Documentation for WebEx XML API 9.0 Schema
Definition Type: Element
Name: accessControl
Namespace: http://www.webex.com/schemas/2002/06/service/ep
Containing Schema: ep.xsd
MinOccurs 0
MaxOccurs (1)
Abstract

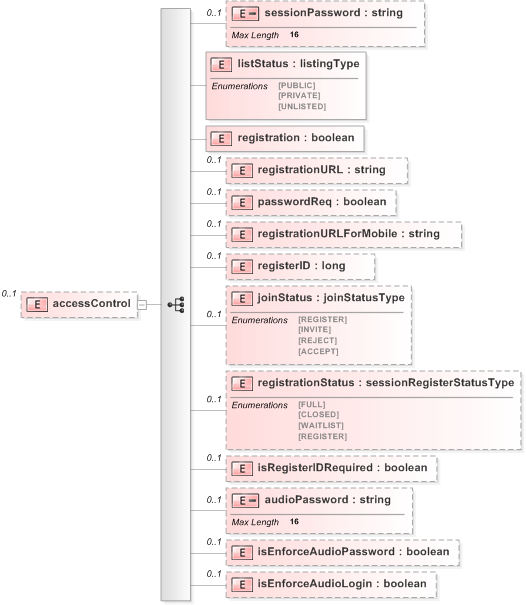

Collapse XSD Schema Diagram:
Drilldown into isEnforceAudioLogin Drilldown into isEnforceAudioPassword Drilldown into audioPassword Drilldown into isRegisterIDRequired Drilldown into registrationStatus Drilldown into joinStatus Drilldown into registerID Drilldown into registrationURLForMobile Drilldown into passwordReq Drilldown into registrationURL Drilldown into registration Drilldown into listStatus Drilldown into sessionPasswordXSD Diagram of accessControl
Collapse XSD Schema Code:
<?xml version="1.0" encoding="utf-16"?>
<xsd:element name="accessControl" minOccurs="0">
    <xsd:complexType>
        <xsd:sequence>
            <xsd:element name="sessionPassword" minOccurs="0">
                <xsd:simpleType>
                    <xsd:restriction base="xsd:string">
                        <xsd:maxLength value="16" />
                    </xsd:restriction>
                </xsd:simpleType>
            </xsd:element>
            <xsd:element name="listStatus" type="ep:listingType" />
            <xsd:element name="registration" type="xsd:boolean" />
            <xsd:element name="registrationURL" type="xsd:string" minOccurs="0" />
            <xsd:element name="passwordReq" type="xsd:boolean" minOccurs="0" />
            <xsd:element name="registrationURLForMobile" type="xsd:string" minOccurs="0" />
            <xsd:element name="registerID" type="xsd:long" minOccurs="0" />
            <xsd:element name="joinStatus" type="att:joinStatusType" minOccurs="0" />
            <xsd:element name="registrationStatus" type="ep:sessionRegisterStatusType" minOccurs="0" />
            <xsd:element name="isRegisterIDRequired" type="xsd:boolean" minOccurs="0" />
            <xsd:element name="audioPassword" minOccurs="0">
                <xsd:simpleType>
                    <xsd:restriction base="xsd:string">
                        <xsd:maxLength value="16" />
                    </xsd:restriction>
                </xsd:simpleType>
            </xsd:element>
            <xsd:element name="isEnforceAudioPassword" type="xsd:boolean" minOccurs="0" />
            <xsd:element name="isEnforceAudioLogin" type="xsd:boolean" minOccurs="0" />
        </xsd:sequence>
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
sessionPassword ep:sessionPassword 0 (1)
listStatus ep:listStatus (1) (1)
registration ep:registration (1) (1)
registrationURL ep:registrationURL 0 (1)
passwordReq ep:passwordReq 0 (1)
registrationURLForMobile ep:registrationURLForMobile 0 (1)
registerID ep:registerID 0 (1)
joinStatus ep:joinStatus 0 (1)
registrationStatus ep:registrationStatus 0 (1)
isRegisterIDRequired ep:isRegisterIDRequired 0 (1)
audioPassword ep:audioPassword 0 (1)
isEnforceAudioPassword ep:isEnforceAudioPassword 0 (1)
isEnforceAudioLogin ep:isEnforceAudioLogin 0 (1)
