Documentation for WebEx XML API 9.0 Schema
Definition Type: ComplexType
Name: lsteventattendeeHistory
Namespace: http://www.webex.com/schemas/2002/06/service/history
Type: serv:bodyContentType
Containing Schema: history.xsd
Abstract

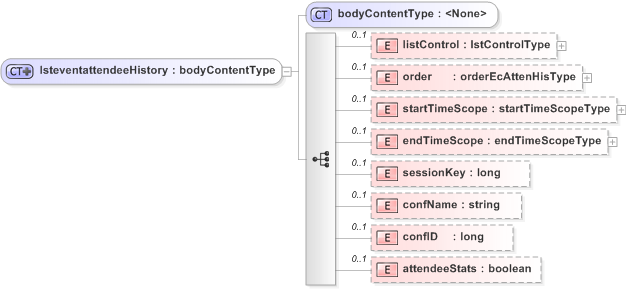

Collapse XSD Schema Diagram:
Drilldown into attendeeStats Drilldown into confID Drilldown into confName Drilldown into sessionKey Drilldown into endTimeScope Drilldown into startTimeScope Drilldown into order Drilldown into listControl Drilldown into bodyContentTypeXSD Diagram of lsteventattendeeHistory
Collapse XSD Schema Code:
<?xml version="1.0" encoding="utf-16"?>
<xsd:complexType name="lsteventattendeeHistory">
    <xsd:complexContent>
        <xsd:extension base="serv:bodyContentType">
            <xsd:sequence>
                <xsd:element name="listControl" type="serv:lstControlType" minOccurs="0" />
                <xsd:element name="order" type="history:orderEcAttenHisType" minOccurs="0" />
                <xsd:element name="startTimeScope" type="history:startTimeScopeType" minOccurs="0" />
                <xsd:element name="endTimeScope" type="history:endTimeScopeType" minOccurs="0" />
                <xsd:element name="sessionKey" type="xsd:long" minOccurs="0" />
                <xsd:element name="confName" type="xsd:string" minOccurs="0" />
                <xsd:element name="confID" type="xsd:long" minOccurs="0" />
                <xsd:element name="attendeeStats" type="xsd:boolean" minOccurs="0" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
listControl history:listControl 0 (1)
order history:order 0 (1)
startTimeScope history:startTimeScope 0 (1)
endTimeScope history:endTimeScope 0 (1)
sessionKey history:sessionKey 0 (1)
confName history:confName 0 (1)
confID history:confID 0 (1)
attendeeStats history:attendeeStats 0 (1)
Collapse Derivation Tree:
