Documentation for WebEx XML API 9.0 Schema
Definition Type: ComplexType
Name: messageType
Namespace: http://www.webex.com/schemas/2002/06/service
Containing Schema: service.xsd
Abstract

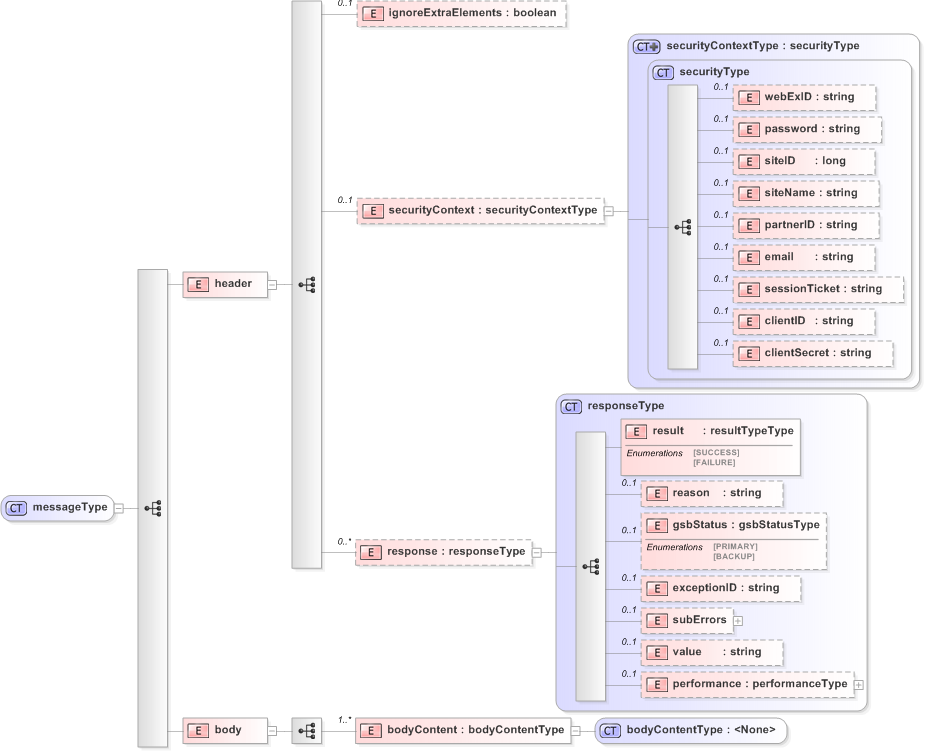

Collapse XSD Schema Diagram:
Drilldown into bodyContentType Drilldown into bodyContent Drilldown into body Drilldown into performance Drilldown into value Drilldown into subErrors Drilldown into exceptionID Drilldown into gsbStatus Drilldown into reason Drilldown into result Drilldown into responseType Drilldown into response Drilldown into clientSecret Drilldown into clientID Drilldown into sessionTicket Drilldown into email Drilldown into partnerID Drilldown into siteName Drilldown into siteID Drilldown into password Drilldown into webExID Drilldown into securityType Drilldown into securityContextType Drilldown into securityContext Drilldown into ignoreExtraElements Drilldown into headerXSD Diagram of messageType
Collapse XSD Schema Code:
<?xml version="1.0" encoding="utf-16"?>
<xsd:complexType name="messageType">
    <xsd:sequence>
        <xsd:element name="header">
            <xsd:complexType>
                <xsd:sequence>
                    <xsd:element name="ignoreExtraElements" type="xsd:boolean" minOccurs="0" />
                    <xsd:element name="securityContext" type="serv:securityContextType" minOccurs="0" />
                    <xsd:element name="response" type="serv:responseType" minOccurs="0" maxOccurs="unbounded" />
                </xsd:sequence>
            </xsd:complexType>
        </xsd:element>
        <xsd:element name="body">
            <xsd:complexType>
                <xsd:sequence>
                    <xsd:element name="bodyContent" type="serv:bodyContentType" maxOccurs="unbounded" />
                </xsd:sequence>
            </xsd:complexType>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
header serv:header (1) (1)
body serv:body (1) (1)
Collapse Derivation Tree:
Collapse References:
serv:message
