Documentation for WebEx XML API 9.0 Schema
Definition Type: ComplexType
Name: salesSessionType
Namespace: http://www.webex.com/schemas/2002/06/service/sales
Type: serv:bodyContentType
Containing Schema: sales.xsd
Abstract

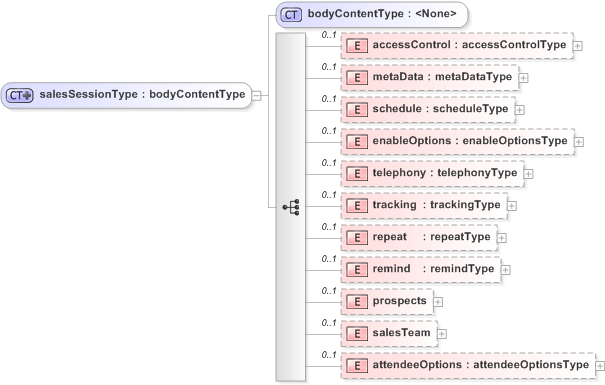

Collapse XSD Schema Diagram:
Drilldown into attendeeOptions Drilldown into salesTeam Drilldown into prospects Drilldown into remind Drilldown into repeat Drilldown into tracking Drilldown into telephony Drilldown into enableOptions Drilldown into schedule Drilldown into metaData Drilldown into accessControl Drilldown into bodyContentTypeXSD Diagram of salesSessionType
Collapse XSD Schema Code:
<?xml version="1.0" encoding="utf-16"?>
<xsd:complexType name="salesSessionType">
    <xsd:complexContent>
        <xsd:extension base="serv:bodyContentType">
            <xsd:sequence>
                <xsd:element name="accessControl" type="sales:accessControlType" minOccurs="0" />
                <xsd:element name="metaData" type="sales:metaDataType" minOccurs="0" />
                <xsd:element name="schedule" type="sales:scheduleType" minOccurs="0" />
                <xsd:element name="enableOptions" type="sales:enableOptionsType" minOccurs="0" />
                <xsd:element name="telephony" type="sales:telephonyType" minOccurs="0" />
                <xsd:element name="tracking" type="com:trackingType" minOccurs="0" />
                <xsd:element name="repeat" type="sales:repeatType" minOccurs="0" />
                <xsd:element name="remind" type="sales:remindType" minOccurs="0" />
                <xsd:element name="prospects" minOccurs="0">
                    <xsd:complexType>
                        <xsd:sequence>
                            <xsd:element name="prospect" type="sales:prospectType" minOccurs="0" maxOccurs="unbounded" />
                        </xsd:sequence>
                    </xsd:complexType>
                </xsd:element>
                <xsd:element name="salesTeam" minOccurs="0">
                    <xsd:complexType>
                        <xsd:sequence>
                            <xsd:element name="webExID" minOccurs="0" maxOccurs="unbounded">
                                <xsd:simpleType>
                                    <xsd:restriction base="xsd:string">
                                        <xsd:maxLength value="128" />
                                    </xsd:restriction>
                                </xsd:simpleType>
                            </xsd:element>
                            <xsd:element name="email" type="xsd:string" minOccurs="0" maxOccurs="unbounded" />
                            <xsd:element name="altHosts" type="sales:alternateHostType" minOccurs="0" />
                        </xsd:sequence>
                    </xsd:complexType>
                </xsd:element>
                <xsd:element name="attendeeOptions" type="sales:attendeeOptionsType" minOccurs="0" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
accessControl sales:accessControl 0 (1)
metaData sales:metaData 0 (1)
schedule sales:schedule 0 (1)
enableOptions sales:enableOptions 0 (1)
telephony sales:telephony 0 (1)
tracking sales:tracking 0 (1)
repeat sales:repeat 0 (1)
remind sales:remind 0 (1)
prospects sales:prospects 0 (1)
salesTeam sales:salesTeam 0 (1)
attendeeOptions sales:attendeeOptions 0 (1)
Collapse Derivation Tree:
Collapse References:
sales:salesSessionInstanceType
