Documentation for WebEx XML API 9.0 Schema
Definition Type: ComplexType
Name: searchSession
Namespace: http://www.webex.com/schemas/2002/06/service/ep
Type: serv:bodyContentType
Containing Schema: ep.xsd
Abstract

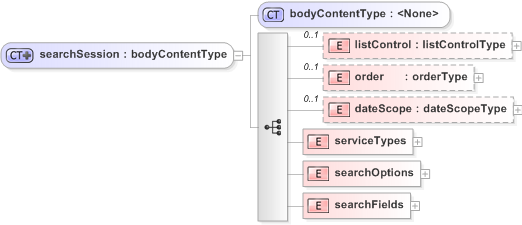

Collapse XSD Schema Diagram:
Drilldown into searchFields Drilldown into searchOptions Drilldown into serviceTypes Drilldown into dateScope Drilldown into order Drilldown into listControl Drilldown into bodyContentTypeXSD Diagram of searchSession
Collapse XSD Schema Code:
<?xml version="1.0" encoding="utf-16"?>
<xsd:complexType name="searchSession">
    <xsd:complexContent>
        <xsd:extension base="serv:bodyContentType">
            <xsd:sequence>
                <xsd:element name="listControl" type="serv:listControlType" minOccurs="0" />
                <xsd:element name="order" type="serv:orderType" minOccurs="0" />
                <xsd:element name="dateScope" type="serv:dateScopeType" minOccurs="0" />
                <xsd:element name="serviceTypes">
                    <xsd:complexType>
                        <xsd:sequence>
                            <xsd:element name="serviceType" type="com:serviceTypeType" maxOccurs="5" />
                        </xsd:sequence>
                    </xsd:complexType>
                </xsd:element>
                <xsd:element name="searchOptions">
                    <xsd:complexType>
                        <xsd:sequence>
                            <xsd:element name="keyword" type="xsd:string" />
                            <xsd:element name="caseSensitive" type="xsd:boolean" default="false" minOccurs="0" />
                            <xsd:element name="matchMethod" type="ep:matchMethodType" minOccurs="0" />
                        </xsd:sequence>
                    </xsd:complexType>
                </xsd:element>
                <xsd:element name="searchFields">
                    <xsd:complexType>
                        <xsd:sequence>
                            <xsd:element name="searchField" type="ep:searchFieldType" maxOccurs="2" />
                        </xsd:sequence>
                    </xsd:complexType>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
listControl ep:listControl 0 (1)
order ep:order 0 (1)
dateScope ep:dateScope 0 (1)
serviceTypes ep:serviceTypes (1) (1)
searchOptions ep:searchOptions (1) (1)
searchFields ep:searchFields (1) (1)
Collapse Derivation Tree:
