Documentation for WebEx XML API 9.0 Schema
Definition Type: ComplexType
Name: supportedServicesType
Namespace: http://www.webex.com/schemas/2002/06/service/site
Containing Schema: site.xsd
Abstract

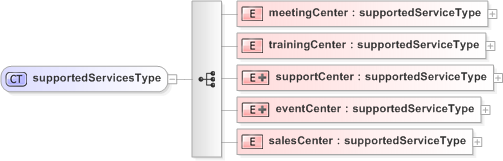

Collapse XSD Schema Diagram:
Drilldown into salesCenter Drilldown into eventCenter Drilldown into supportCenter Drilldown into trainingCenter Drilldown into meetingCenterXSD Diagram of supportedServicesType
Collapse XSD Schema Code:
<?xml version="1.0" encoding="utf-16"?>
<xsd:complexType name="supportedServicesType">
    <xsd:sequence>
        <xsd:element name="meetingCenter" type="site:supportedServiceType" />
        <xsd:element name="trainingCenter" type="site:supportedServiceType" />
        <xsd:element name="supportCenter">
            <xsd:complexType>
                <xsd:complexContent>
                    <xsd:extension base="site:supportedServiceType">
                        <xsd:sequence>
                            <xsd:element name="webACD" type="xsd:boolean" minOccurs="0" />
                        </xsd:sequence>
                    </xsd:extension>
                </xsd:complexContent>
            </xsd:complexType>
        </xsd:element>
        <xsd:element name="eventCenter">
            <xsd:complexType>
                <xsd:complexContent>
                    <xsd:extension base="site:supportedServiceType">
                        <xsd:sequence>
                            <xsd:element name="marketingAddOn" type="xsd:boolean" />
                            <xsd:element name="optimizeAttendeeBandwidthUsage" type="xsd:boolean" />
                        </xsd:sequence>
                    </xsd:extension>
                </xsd:complexContent>
            </xsd:complexType>
        </xsd:element>
        <xsd:element name="salesCenter" type="site:supportedServiceType" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
meetingCenter site:meetingCenter (1) (1)
trainingCenter site:trainingCenter (1) (1)
supportCenter site:supportCenter (1) (1)
eventCenter site:eventCenter (1) (1)
salesCenter site:salesCenter (1) (1)
Collapse Derivation Tree:
Collapse References:
site:supportedServices
