Documentation for WebEx XML API 9.0 Schema
Definition Type: ComplexType
Name: telephonyType
Namespace: http://www.webex.com/schemas/2002/06/service/event
Containing Schema: event.xsd
Abstract

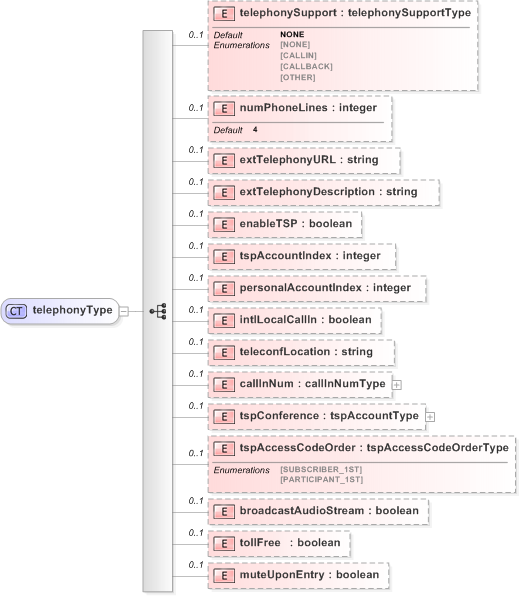

Collapse XSD Schema Diagram:
Drilldown into muteUponEntry Drilldown into tollFree Drilldown into broadcastAudioStream Drilldown into tspAccessCodeOrder Drilldown into tspConference Drilldown into callInNum Drilldown into teleconfLocation Drilldown into intlLocalCallIn Drilldown into personalAccountIndex Drilldown into tspAccountIndex Drilldown into enableTSP Drilldown into extTelephonyDescription Drilldown into extTelephonyURL Drilldown into numPhoneLines Drilldown into telephonySupportXSD Diagram of telephonyType
Collapse XSD Schema Code:
<?xml version="1.0" encoding="utf-16"?>
<xsd:complexType name="telephonyType">
    <xsd:sequence>
        <xsd:element name="telephonySupport" type="event:telephonySupportType" default="NONE" minOccurs="0" />
        <xsd:element name="numPhoneLines" type="xsd:integer" default="4" minOccurs="0" />
        <xsd:element name="extTelephonyURL" type="xsd:string" minOccurs="0" />
        <xsd:element name="extTelephonyDescription" type="xsd:string" minOccurs="0" />
        <xsd:element name="enableTSP" type="xsd:boolean" minOccurs="0" />
        <xsd:element name="tspAccountIndex" type="xsd:integer" minOccurs="0" />
        <xsd:element name="personalAccountIndex" type="xsd:integer" minOccurs="0" />
        <xsd:element name="intlLocalCallIn" type="xsd:boolean" minOccurs="0" />
        <xsd:element name="teleconfLocation" type="xsd:string" minOccurs="0" />
        <xsd:element name="callInNum" type="serv:callInNumType" minOccurs="0" />
        <xsd:element name="tspConference" type="serv:tspAccountType" minOccurs="0" />
        <xsd:element name="tspAccessCodeOrder" type="serv:tspAccessCodeOrderType" minOccurs="0" />
        <xsd:element name="broadcastAudioStream" type="xsd:boolean" minOccurs="0" />
        <xsd:element name="tollFree" type="xsd:boolean" minOccurs="0" />
        <xsd:element name="muteUponEntry" type="xsd:boolean" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
telephonySupport event:telephonySupport 0 (1)
numPhoneLines event:numPhoneLines 0 (1)
extTelephonyURL event:extTelephonyURL 0 (1)
extTelephonyDescription event:extTelephonyDescription 0 (1)
enableTSP event:enableTSP 0 (1)
tspAccountIndex event:tspAccountIndex 0 (1)
personalAccountIndex event:personalAccountIndex 0 (1)
intlLocalCallIn event:intlLocalCallIn 0 (1)
teleconfLocation event:teleconfLocation 0 (1)
callInNum event:callInNum 0 (1)
tspConference event:tspConference 0 (1)
tspAccessCodeOrder event:tspAccessCodeOrder 0 (1)
broadcastAudioStream event:broadcastAudioStream 0 (1)
tollFree event:tollFree 0 (1)
muteUponEntry event:muteUponEntry 0 (1)
Collapse Derivation Tree:
Collapse References:
event:telephony
